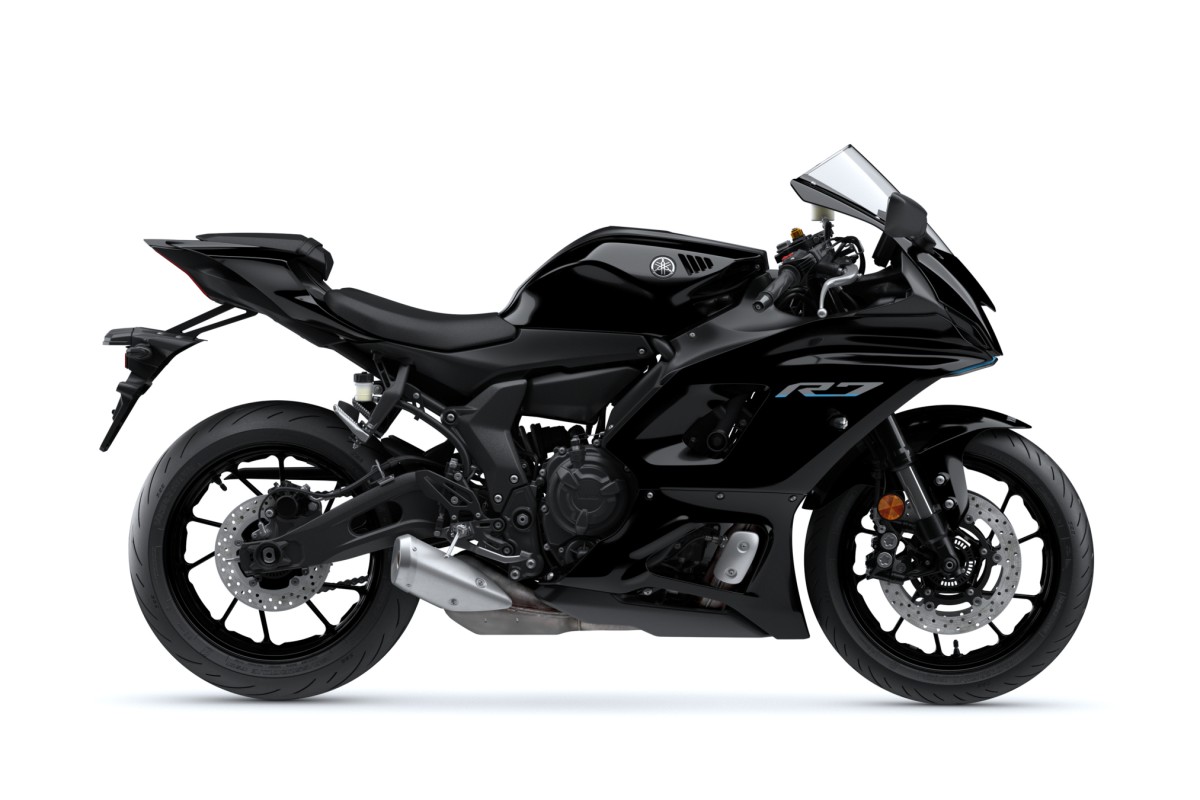

Yamaha YZF-R7

ENGINE TYPE
2-cylinder, Liquid-cooled, EURO5, 4-stroke, 4-valves, DOHC

DISPLACEMENT
689cc

BORE X STROKE
80.0 x 68.6 mm

COMPRESSION RATION
11,5:1

RATED OUTPUT
54,0 kW (73,4 PS) @ 8.750 rpm

MAX. TORQUE
67,0 Nm (6.8 kg-m) @ 6.500 rpm

LUBRICATION
Wet sump

FUEL SUPPL
Fuel Injection

CERTIFICATION
Euro 5

CLUTCH
Wet, Multiple Disc

GEARBOX
6 Speed

FINAL DRIVE
Chain

IGNITION
TCI

STARTING
Electric

FRAME
Diamond

FRONT SUSPENSION
Telescopic fork

FRONT SUSPENSION STROKE
130 mm

FRONT BRAKE
Hydraulic dual disc brake, Ø298 mm

REAR SUSPENSION
Swingarm, (link suspension)

REAR SUSPENSION STROKE
130 mm

REAR BRAKE
Hydraulic single disc brake, Ø245 mm

FRONT TYRE
120/70ZR17M/C (58W) Tubeless

REAR TYRE
180/55ZR17M/C (73W) Tubeless

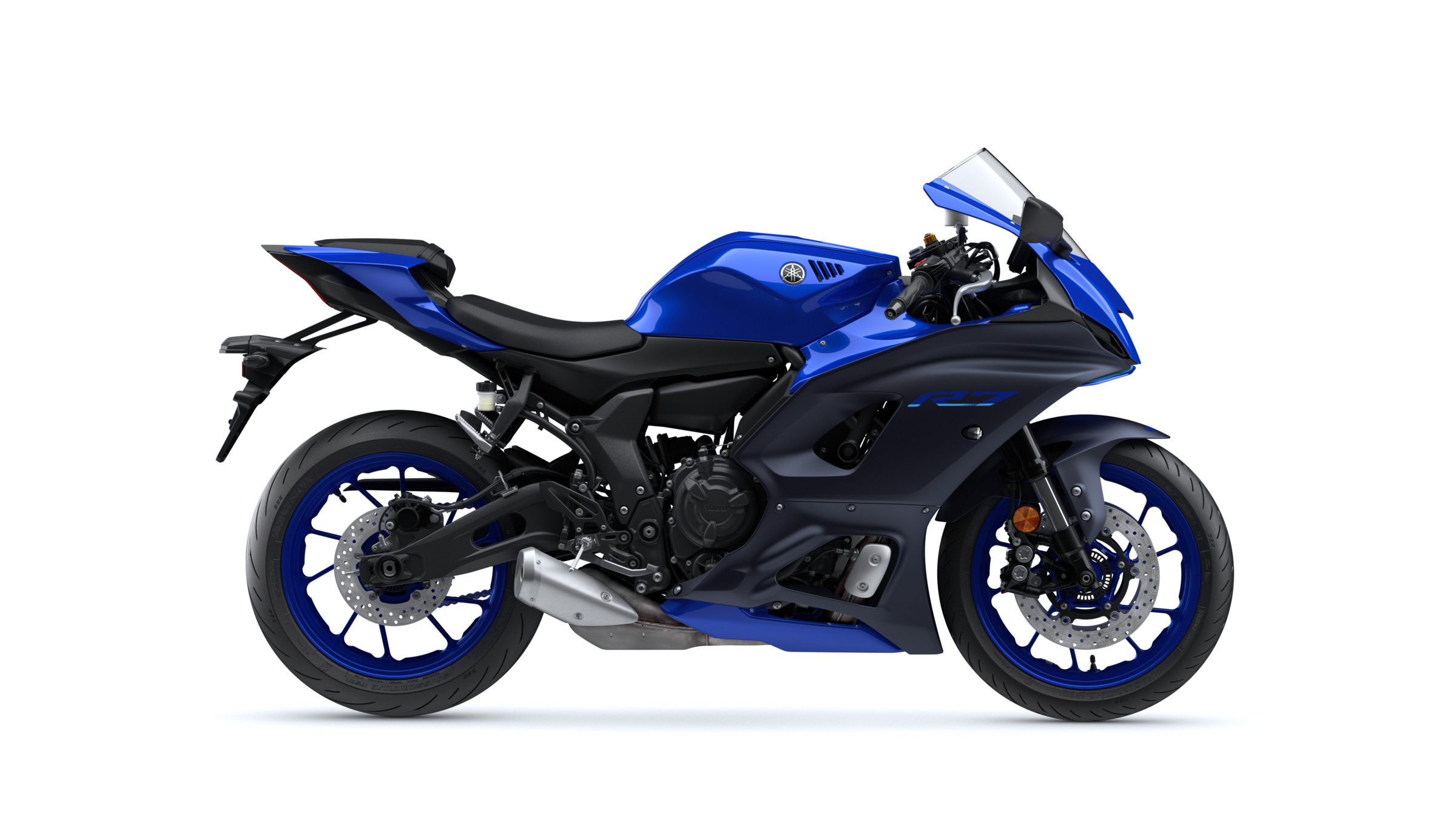

LENGTH
2.070 mm

WIDTH
705 mm

HEIGHT
1.160 mm

GROUND CLEARANCE
135 mm

UNLADEN WEIGHT
188 kg

USABABLE TANK VOLUME
13,0 l

WHEELBASE
1.395 mm

SEAT HEIGHT
835 mm
